Cabri Java Project |

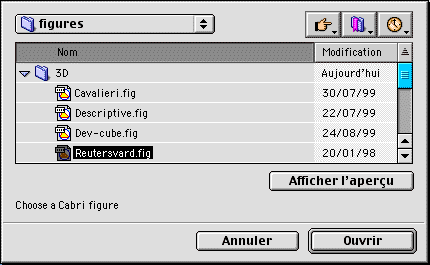

At launching of the application, a dialog proposes to choose a CABRI file produced by the application CABRI geometry II. These files must be produced beforehand on the local disc of the user or be downloaded from the Web site which you want to edit. In this last case, it is advised to place on its disc a copy of work of the site identical to the original. Thus the names and files will be the same ones locally and on the site and no illegal reference to a non-existent file should occur. For the same reasons, it is advised to use only alphanumeric characters in the file names or folders.
|
Two menus are proposed: |
|
|
- Edition makes it possible to choose the parameters to be used which will be deferred in page HTML backed up once. The colors suggested are the 216 colors known as of the Web (pallet color of Netscape adopted by the other navigators). The basic images must be with format GIF (gif suffix) or JPEG (jpg suffix). The languages are not yet all present (make an attempt translation or miss time to integrate the particular languages: patience for Greek...)
- File makes it possible to change figure or to record corresponding HTML file. Attention, this recording can be made only if all the parameters are specified and in particular if the place of the CabriJava.jar archive to be referred in page HTML is known. This is why a dialog of choice of this file is proposed before giving the name and place of HTML file to be created. This choice of the file, as all the other parameters of Edition menu can be backed up in a file of preferences by the special item menu of File. With the next opening of a figure, the old parameters will be reused. Note that at the time of a backup HTML file, tag < APPLET>... </APPLET > is copied in the clipboard at the same time as the creation of HTML file.
